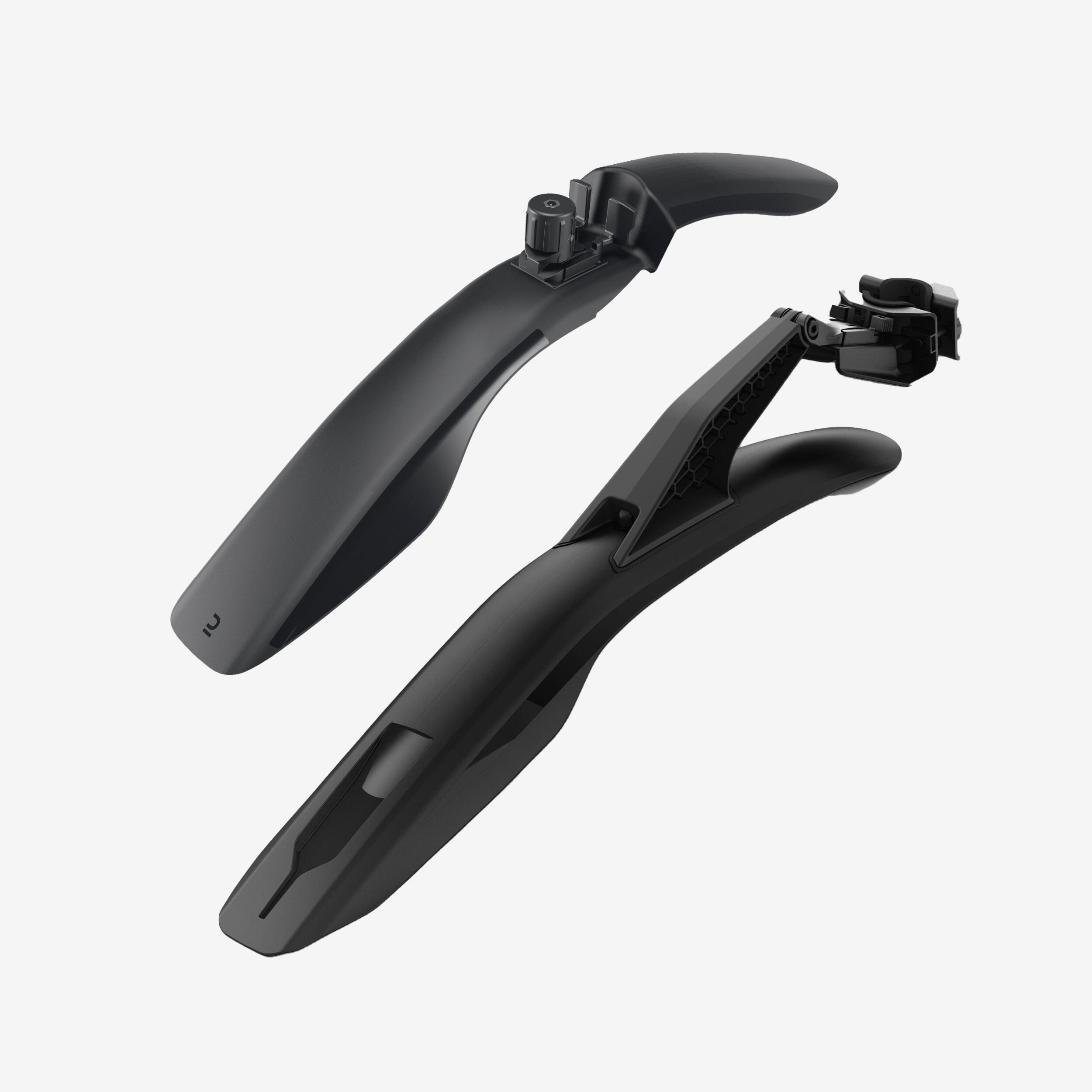

26" - 27.5" - 29" Front/Rear Rigid Mountain Bike Mudguard Kit V3 - Black
Store Availability
Designed for protecting your lower back, torso and face from mud when riding.
This 26" to 29" front and rear mudguard set is very easy to mount and remove.Clipped onto screw fasteners, it provides a perfect fit for your mountain biking outings!
BENEFITS
Compatibility

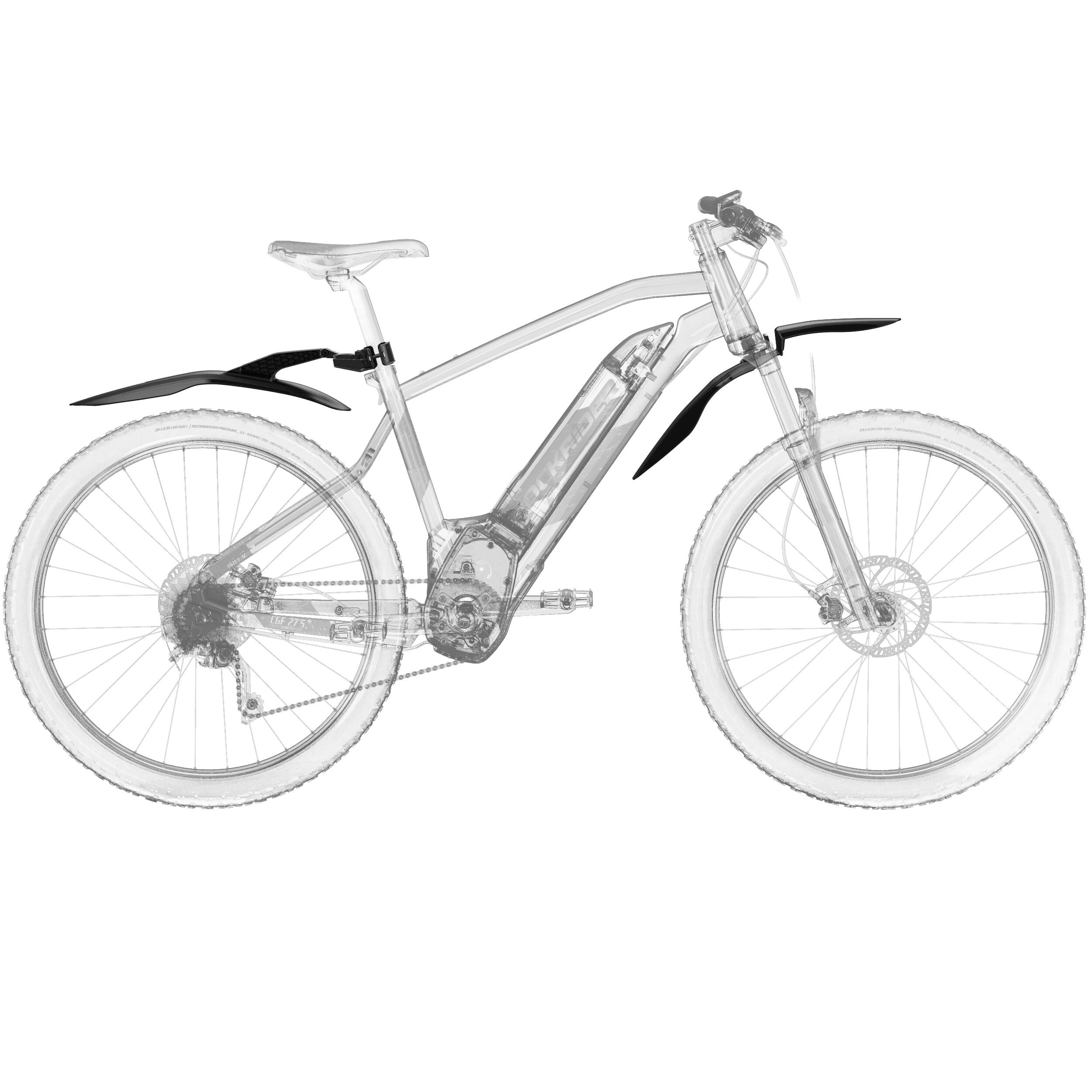

This kit fits 26" to 29" mountain bikes with a telescopic fork
Easy assembly / dismantling
Fits to its screwed-on brackets in just one click and keeps its position setting
Non-messy
This kit effectively protects your lower back, chest and face from muddy spray
Weight
Front weight: 120 g Rear weight: 230 g TOTAL: 350g
Robustness

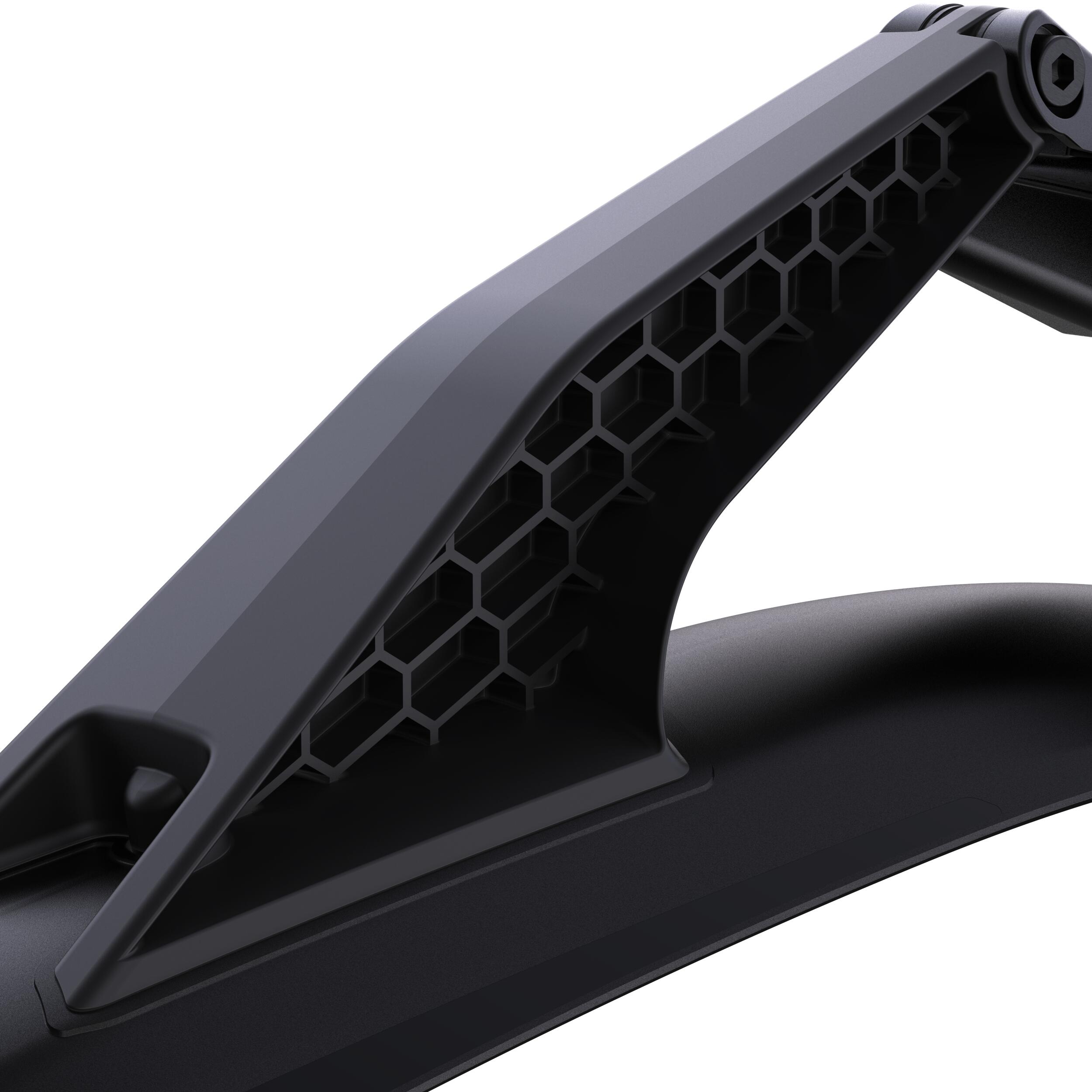

The rear features a "fuse" arm (that unclips) in case of high impacts.
Instructions
DownloadTECHNICAL INFORMATIONS
LEVEL OF PROTECTION
This wide, shock-resistant mudguard kit stops mud getting sprayed onto the rider's lower back, chest and face.
To do this, place the rear mudguard as close as possible (2 to 3 cm) to the wheel.
You can't completely avoid muddy splatters when it's damp...
But for getting from A to B, we recommend using a hybrid bike mudguard kit (with longer blades that are closer to the wheels), if compatible with your bike frame and tyre width.
Bike compatibility
This kit is suitable for 26" to 29" mountain bikes, with a tyre width up to 2.8" in 27.5" and 2.6" in 29", equipped with a telescopic fork.

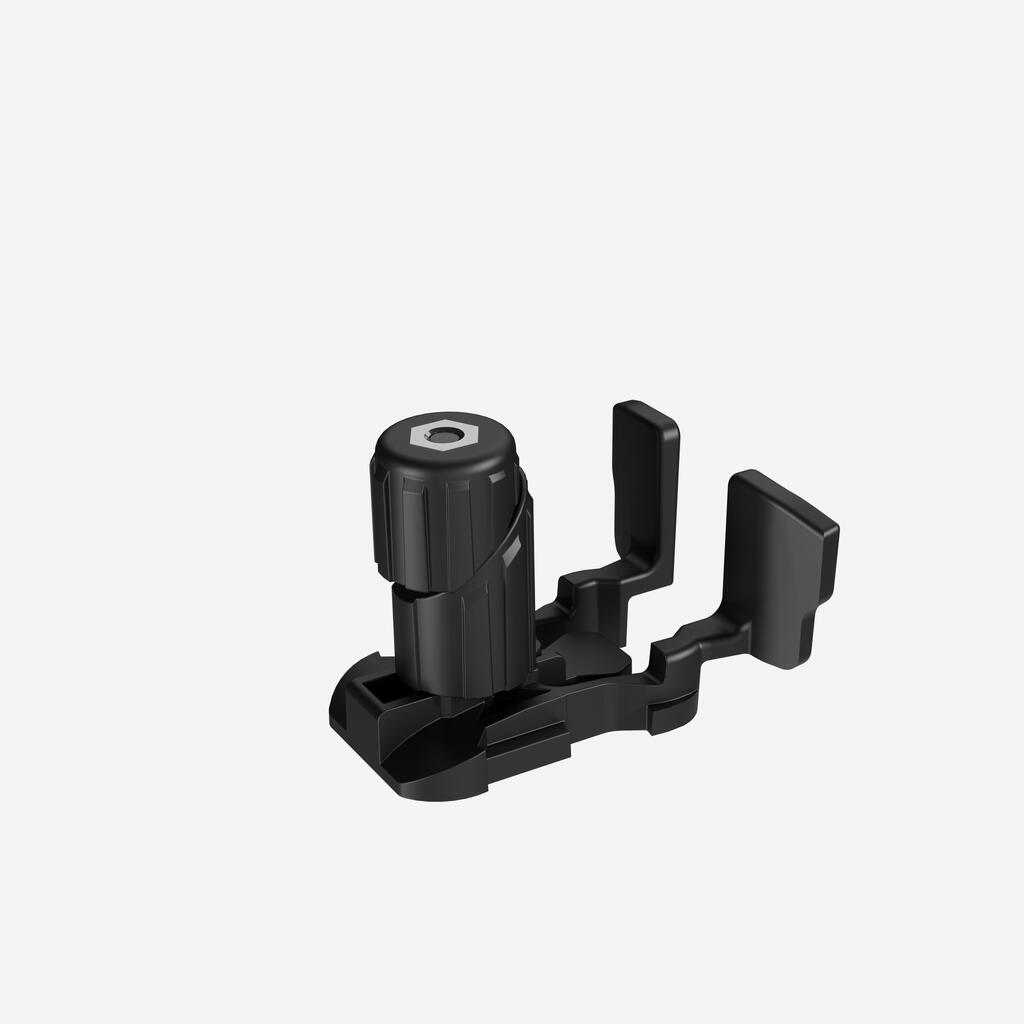

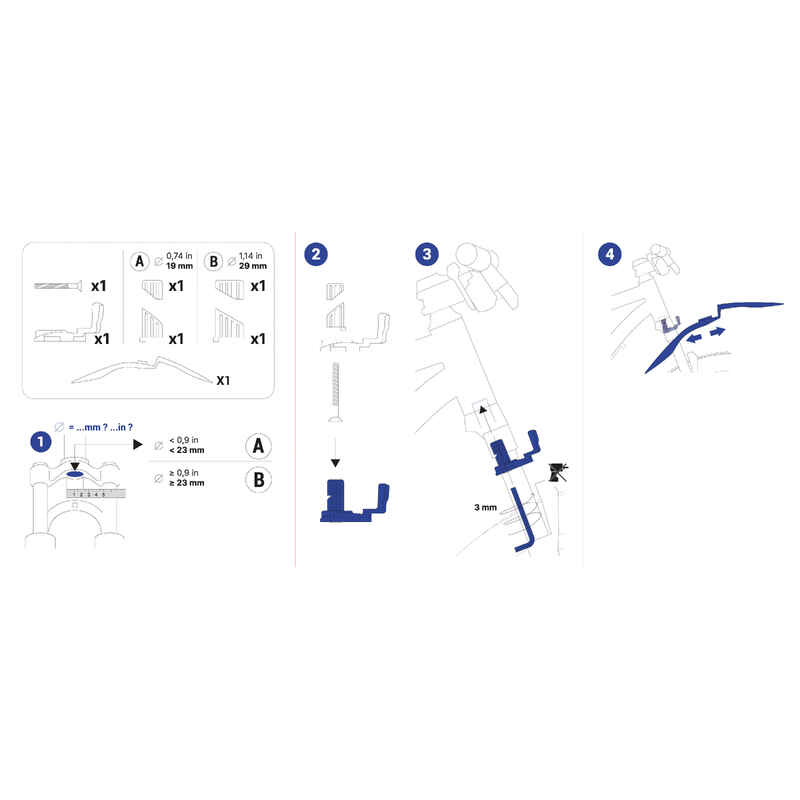

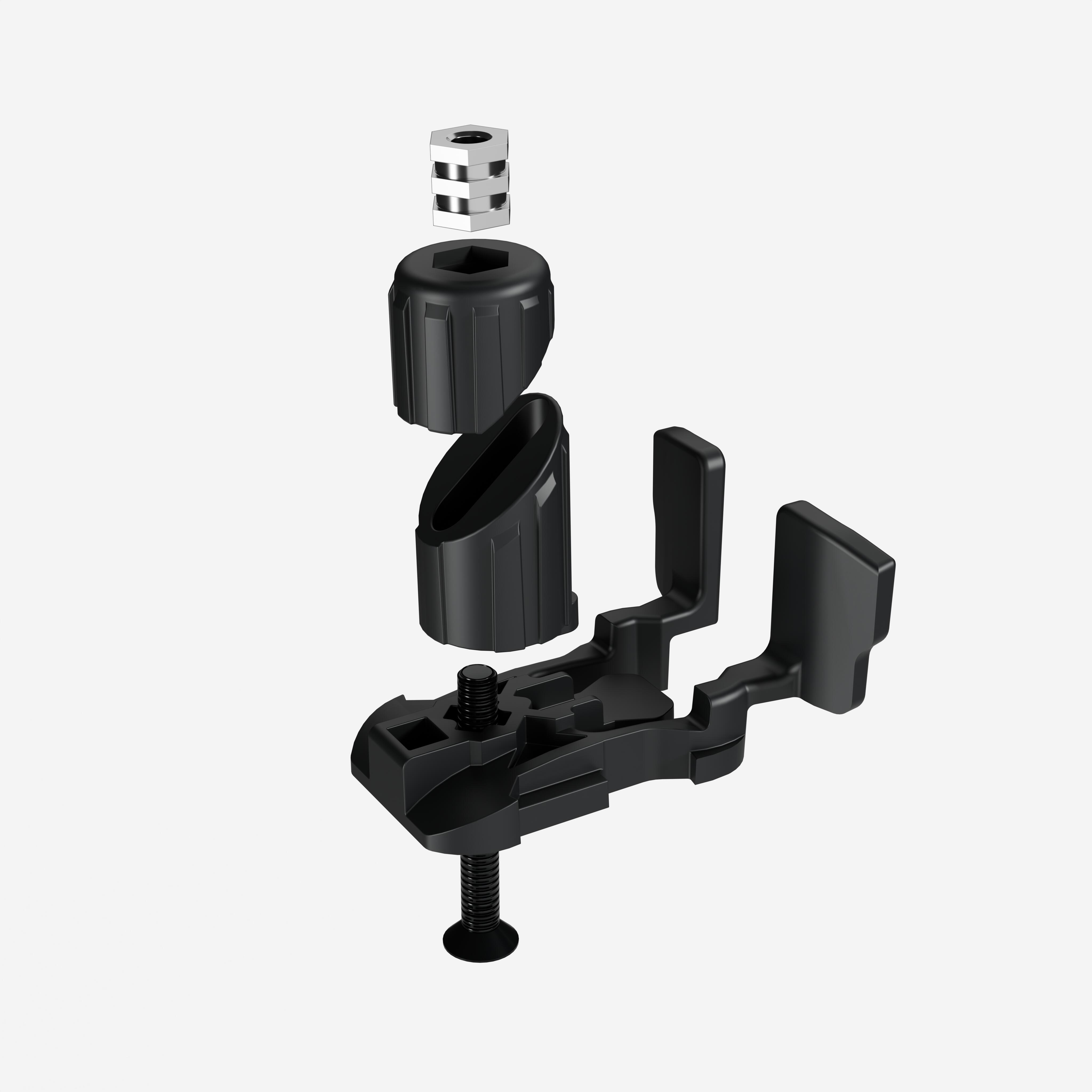

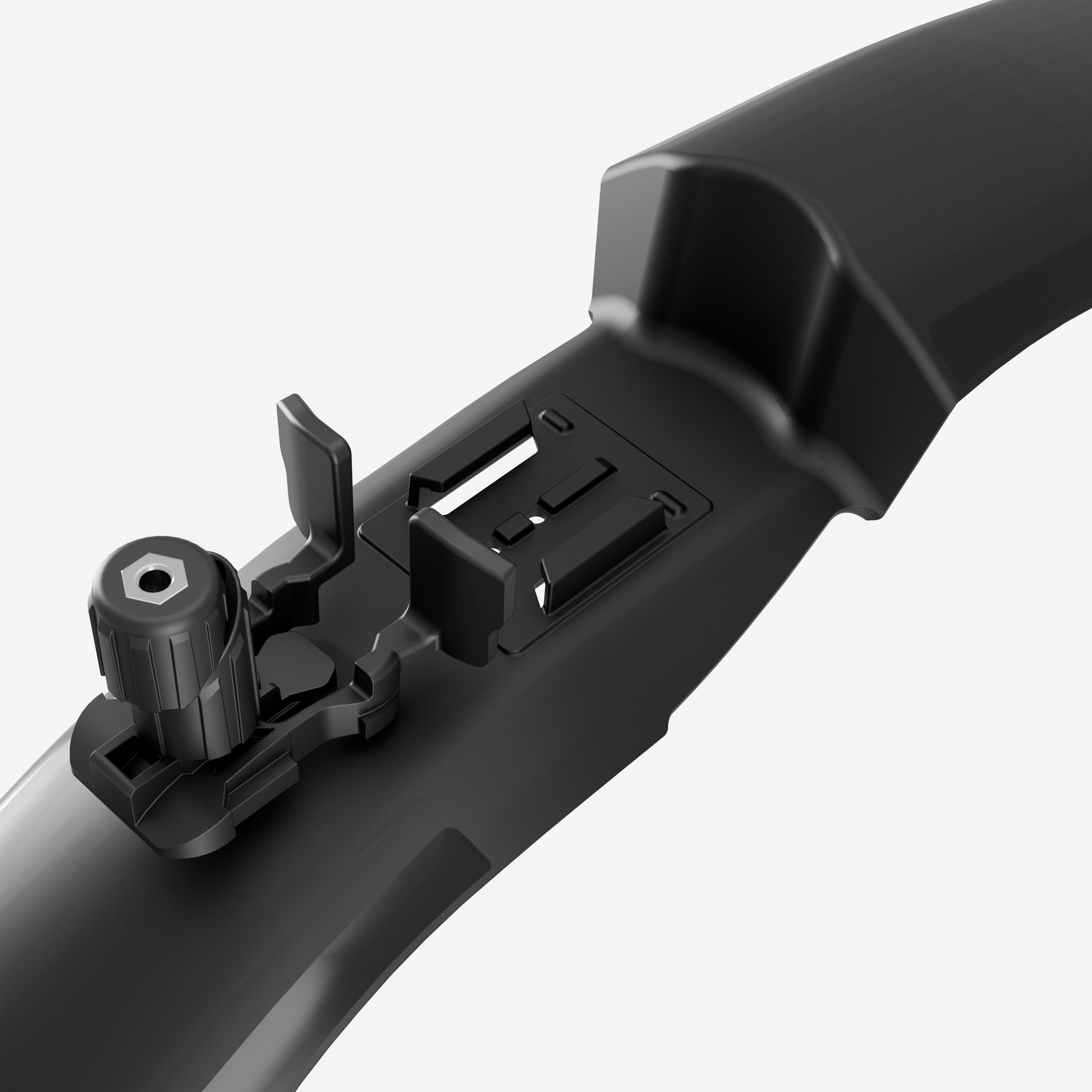

To ensure a good fit at the front, the internal diameter of the steerer tube must be between 18 and 34 mm.In the case of fork steerers ranging from 23 to 24 mm, do not hesitate to use the smallest mounting parts and tighten them firmly.
To ensure a good fit at the rear, the diameter of the seat post must be between 25.4 and 34.9 mm.

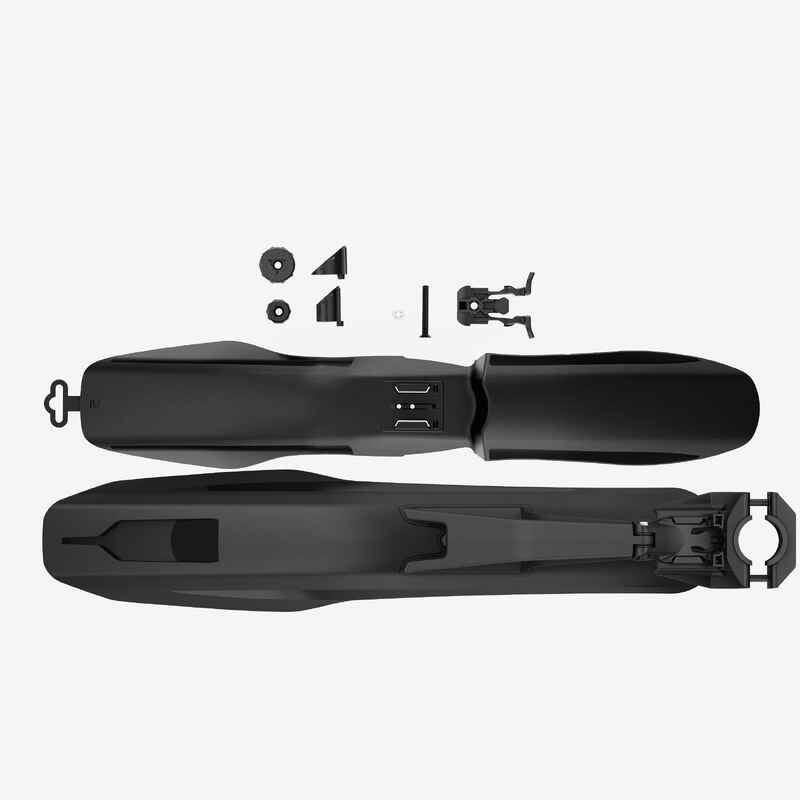

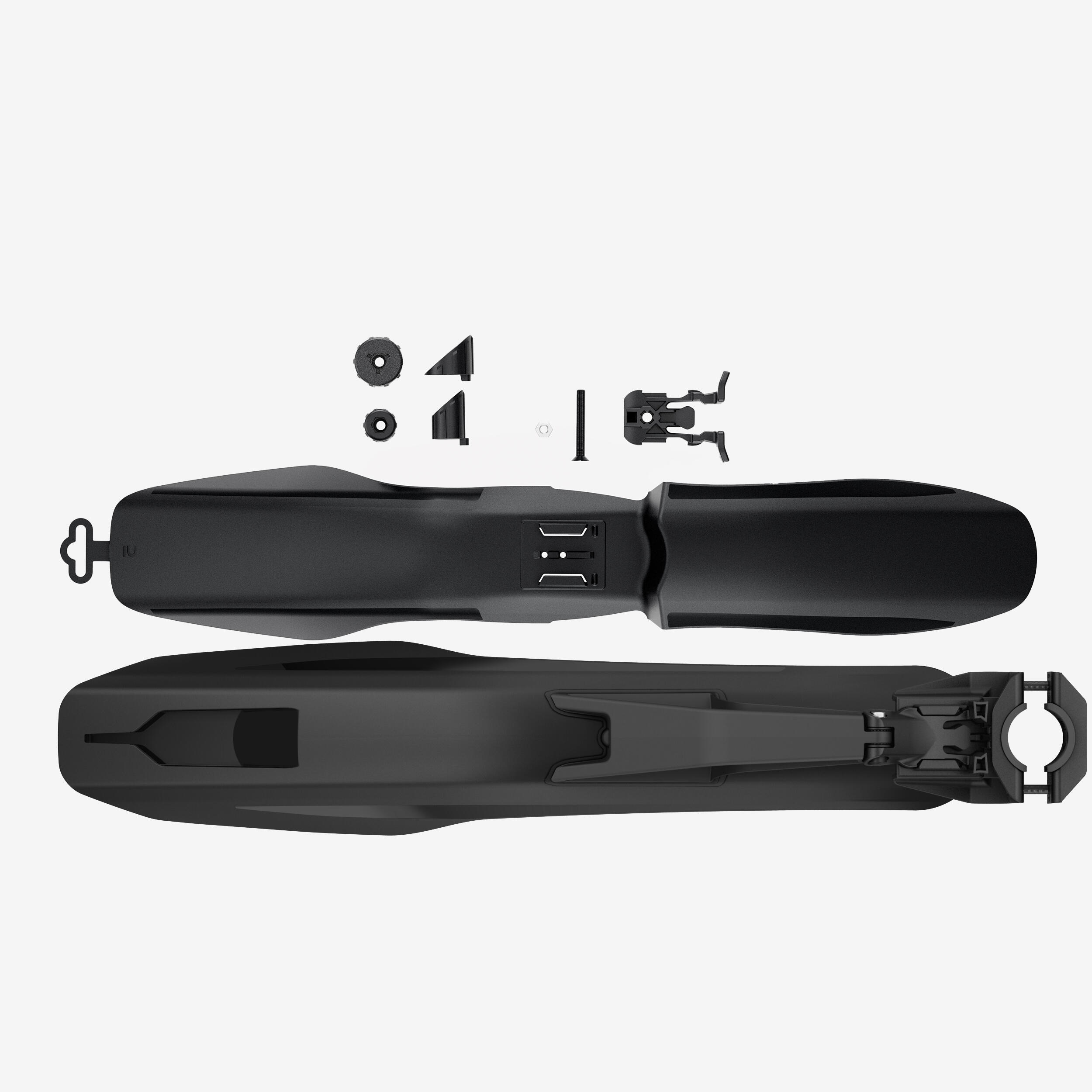

BOX CONTENTS
The front mudguard comes with 2 expanders allowing it to be mounted on steerer tubes with a diameter between 19.2 and 24.2 mm, & 29 and 35 mm.
The rear mudguard comes fully assembled and ready to be mounted, no matter the diameter of your seat post.
A MODERN, EFFICIENT DESIGN
With dimensions that fit all the new wheel and tyre sizes on the market, and with a bold design, our mudguard kit gives your bike a modern, sporty look.
Everything has been designed to give you the best experience:

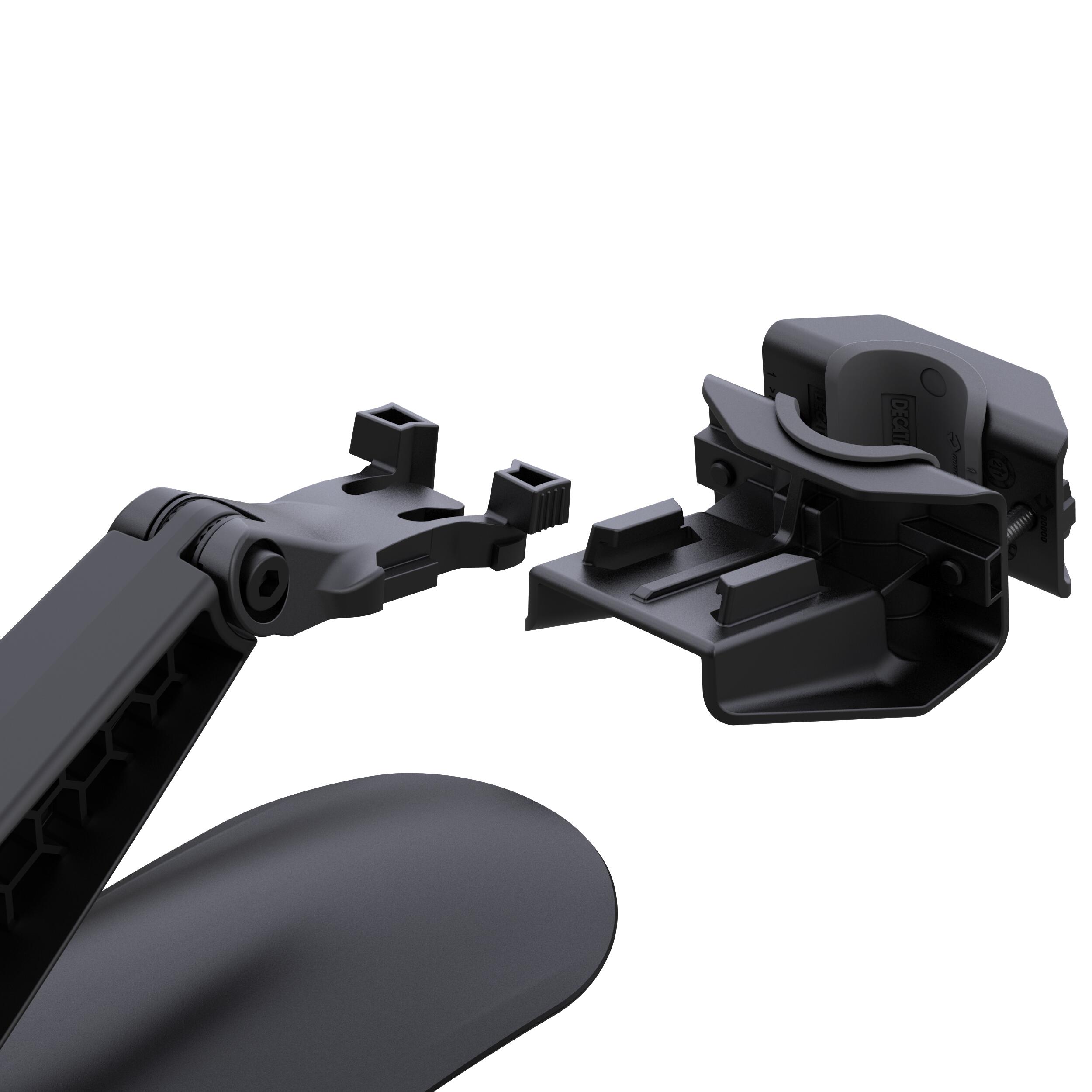

- A reliable screw-on bracket that holds the mudguards in the same position each time
- An easy system to clip the blades onto and take them off your bike depending on the weather
- Compatibility with accessories (camera, lights)
COMPATIBLE ACCESSORIES

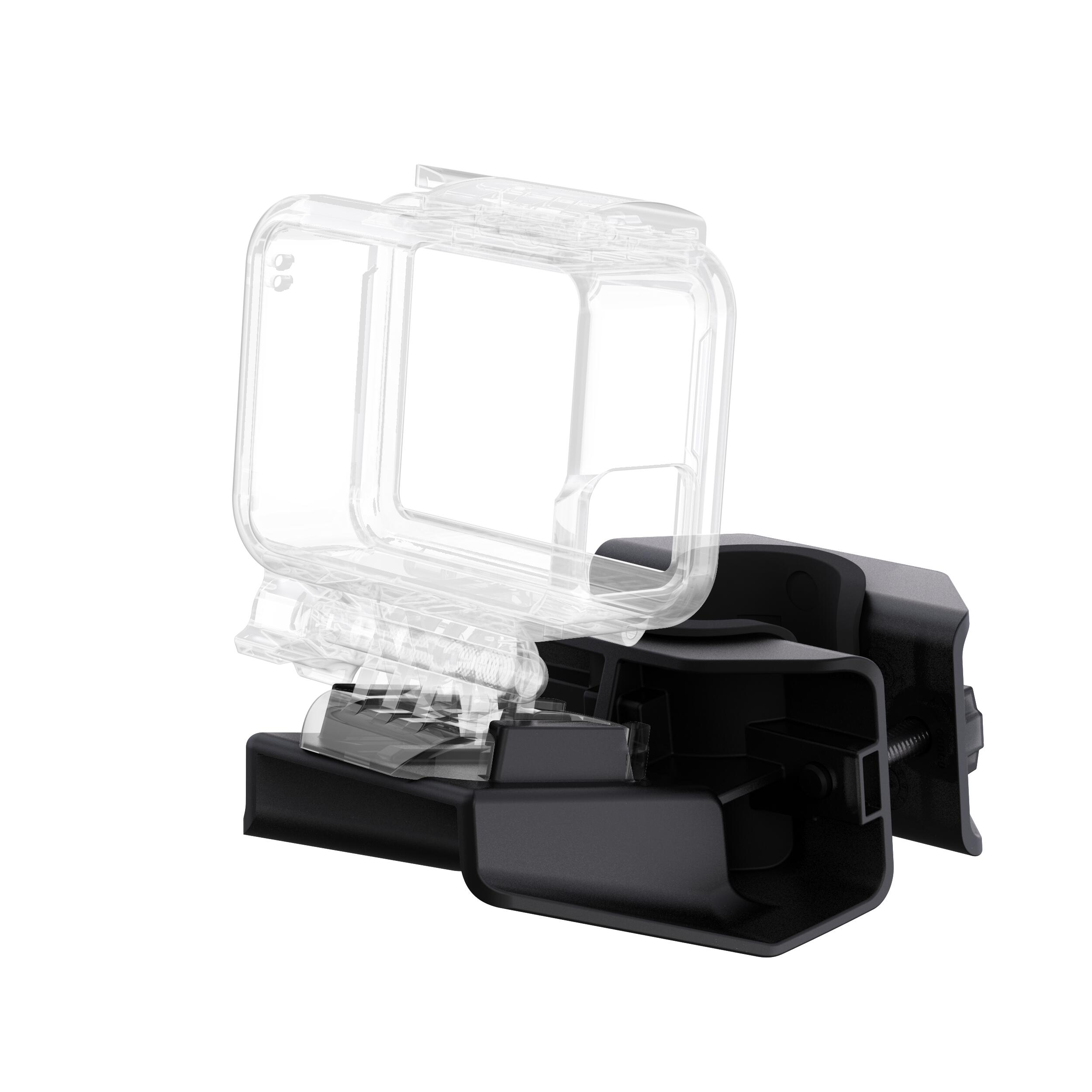

In dry weather, when there's no rain and mud about, you can unclip the blade from the rear bracket and clip a sports camera on instead. 'GoPro’ clip system.

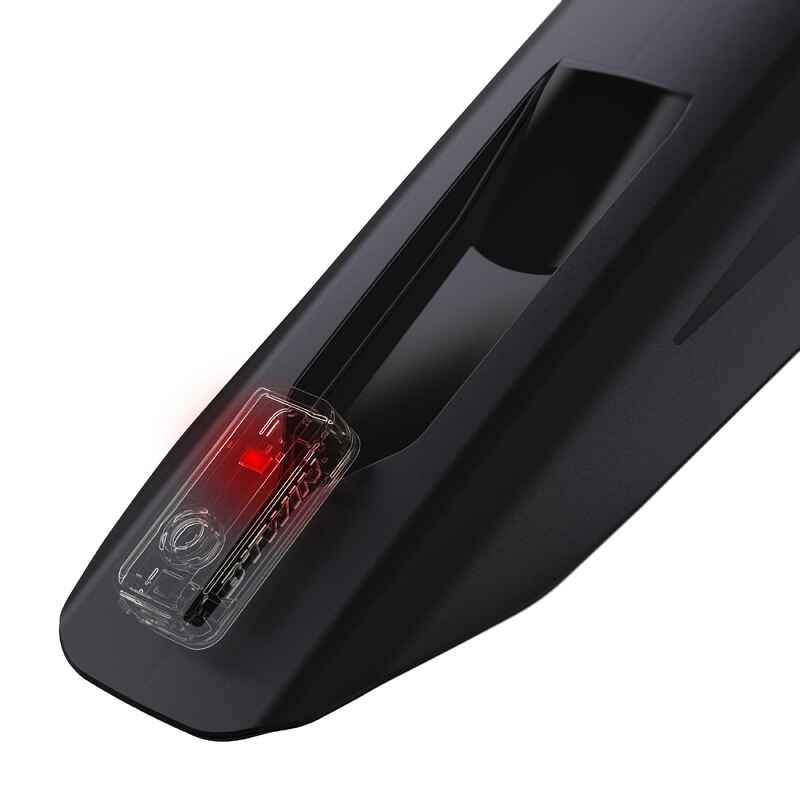

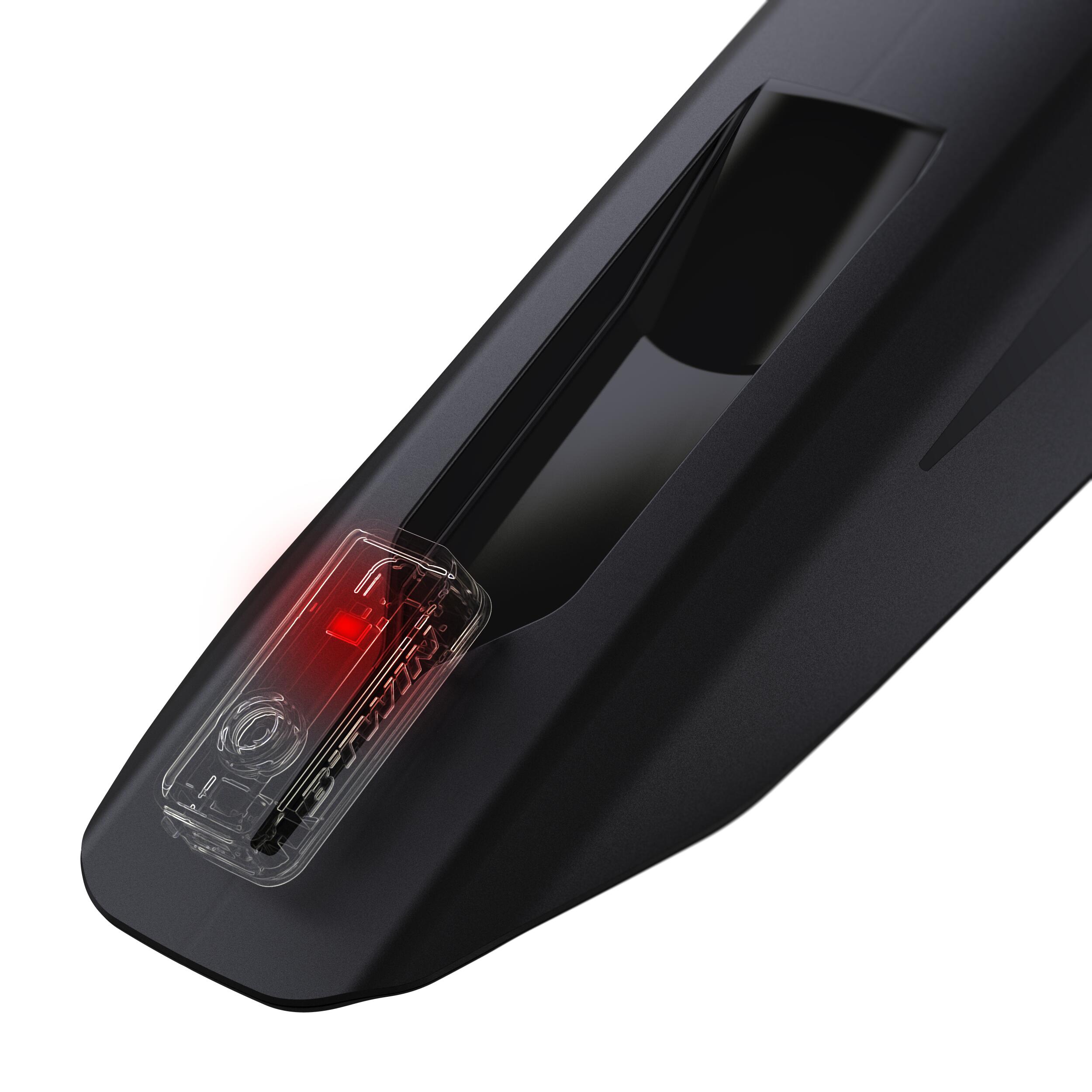

For your safety on trips early in the morning or late at night.A rail is provided at the end of the rear mudguard blade to accommodate a CL 100, CL 500, CL 900, ST 500 or RL 510 type red rear light.
Dimensions and weight
Front:
Blade length: 553 mm
Blade width: 73 to 97 mm
Total weight: 120 g
Rear:

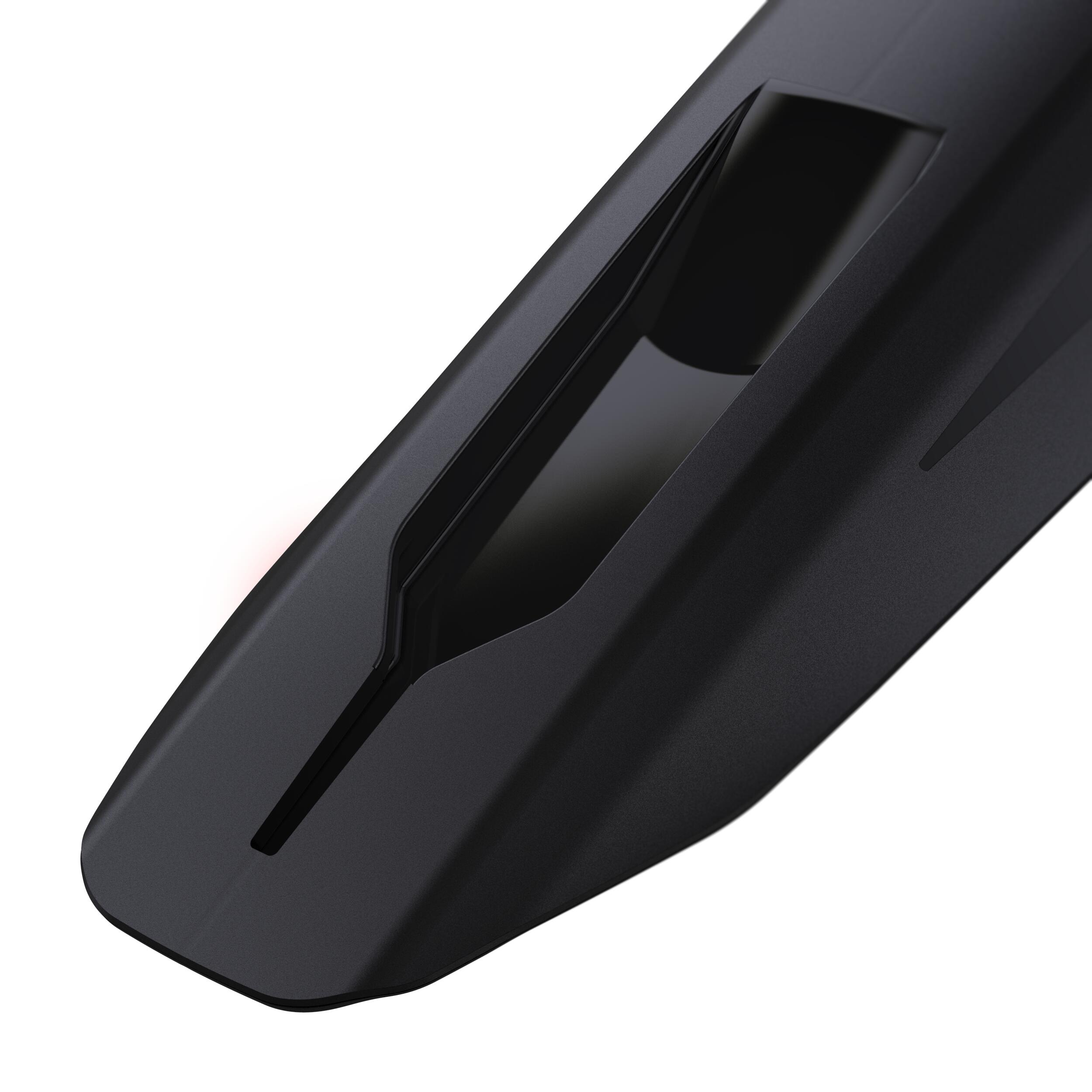

Blade length: 497 mm
Blade width: 73 to 95 mm
Total weight: 230 g
composition
composition
Mudguard: 5.75% Polyoxymethylene, 7.38% Polyamide, 3.16% Glass Fiber, 81.15% Polypropylene, 2.56% Steel
Tips for storage and maintenance
Restrictions on use
Not suitable for bikes with a rigid fork
TESTS AND WARRANTY
Warranty
2 Years
