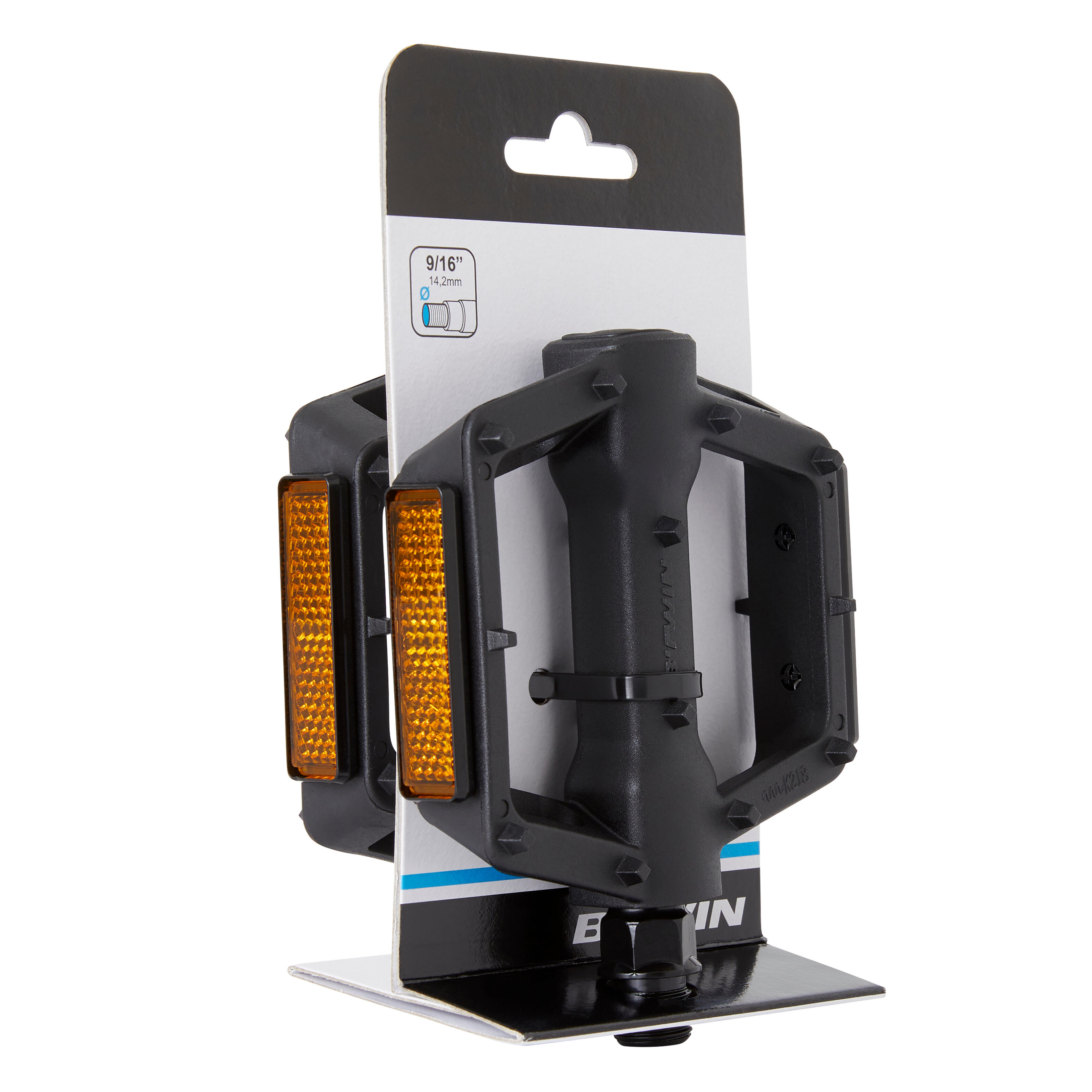

Flat Mountain Bike Pedals 520 9/16 - Black
Store Availability
Our 520 flat pedals are made from resin and designed for adults doing sport mountain biking.
Enjoy increased stability and control with no extra weight, thanks to these flat resin pedals' width and molded studs.
BENEFITS
Weight
Weight: 350 g the pair
Traction

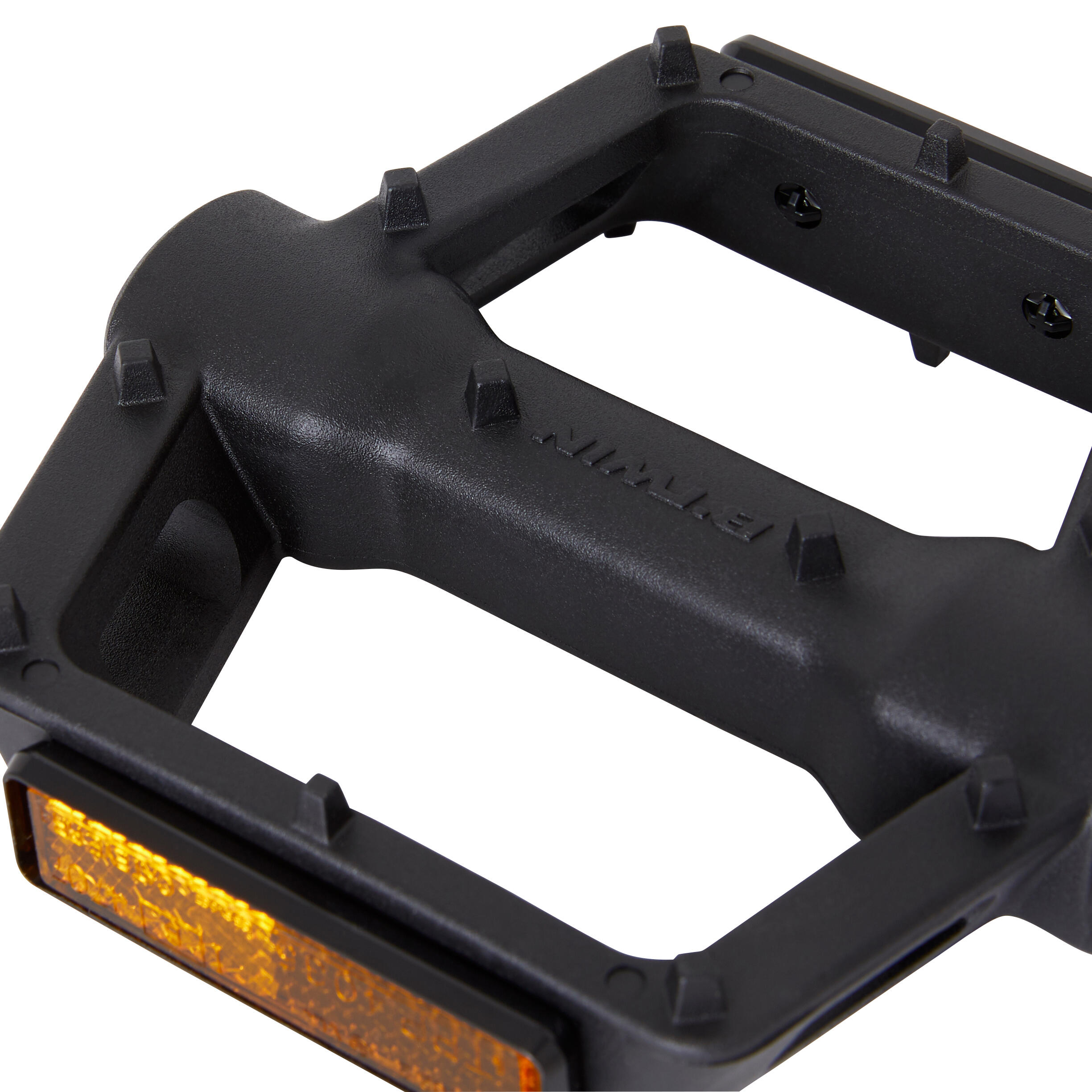

The moulded resin studs provide good grip.
Stability
Large underfoot surface for stability and control.
TECHNICAL INFORMATIONS
BIKE AND CLEAT COMPATIBILITY

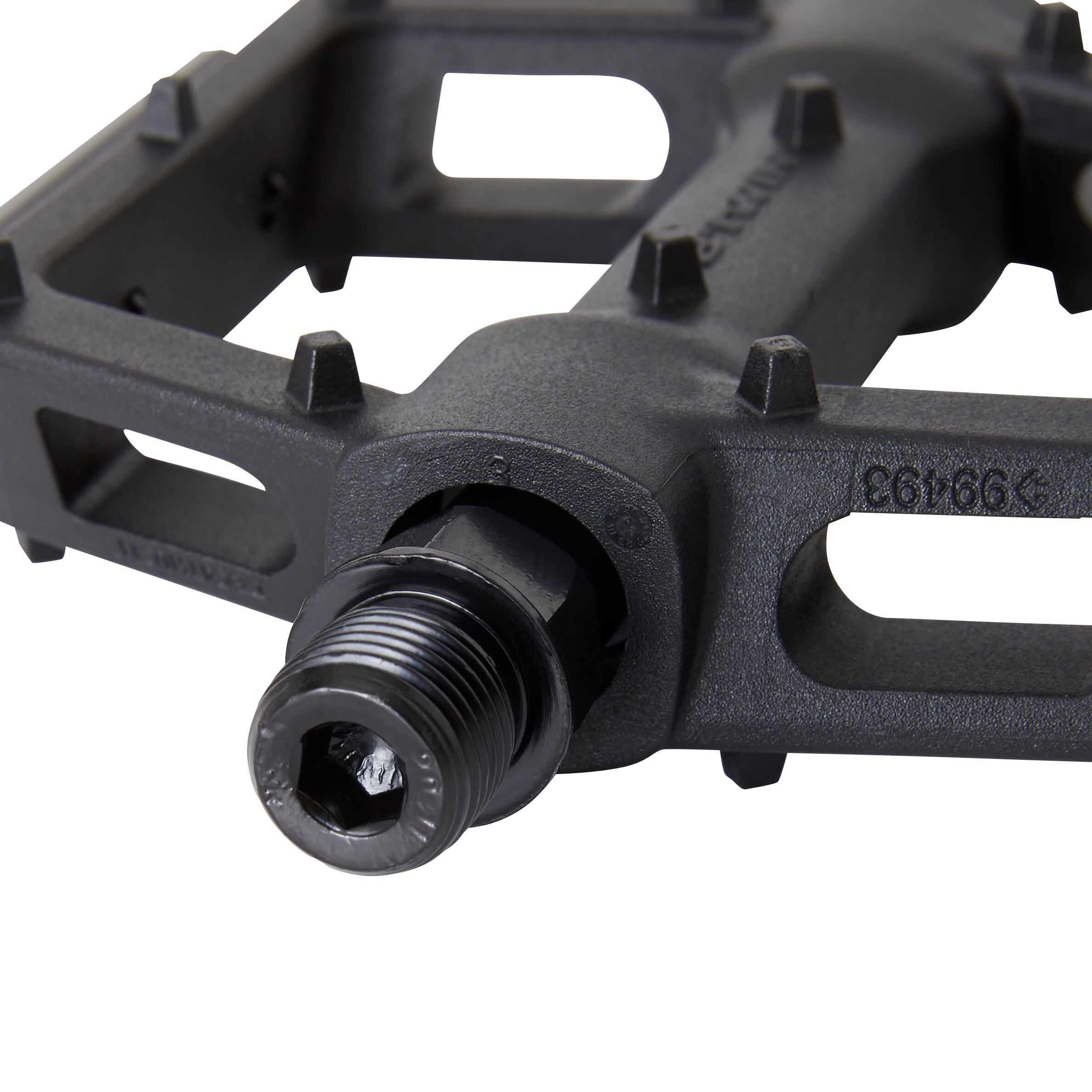

These pedals have a 9/16" standard thread that is compatible with all adult mountain, hybrid, city and road bikes on the market.
Our 520 grip pedals are compatible with universal cleats ref. 8486938
Mounting
To mount the pedals, you'll need a 15 mm spanner or a 6 mm Allen key.
Make sure you screw each pedal on the right way: clockwise for the right, and anticlockwise for the left.
Dimensions
Dimensions of the flat part (excluding reflectors):
Length: 92 mm
Width: 98 mm
Thickness (including the moulded studs): 26 mm
Instructions for use
Avoid pushing through your heel or arch as you pedal as this can lead to pain and fatigue over time.
In the interests of comfort and for efficient pedalling, your foot should be positioned such that the ball of your foot is just above the pedal's spindle.If you need help getting the right position, cleats can help.
Security
There's nothing more visible at night that a moving, lit-up object.
With reflectors on the front and back, our 520 flat mountain bike pedals help make you even more visible to other road users.
Because they are made from resin, the 520 mountain bike pedals are less likely to injure your shins and calves if the pedal spins back unexpectedly.
Materials
Axle: Steel Body: PP resin
Bearing: sliding bearings
composition
composition
Bottle body: 100.0% Polypropylene; Carcass: 100.0% Stainless Steel; Screws: 100.0% Steel
Tips for storage and maintenance
Restrictions on use
Have the assembly checked by a qualified technician.
TESTS AND WARRANTY
Warranty
2 Years
