ITIWIT

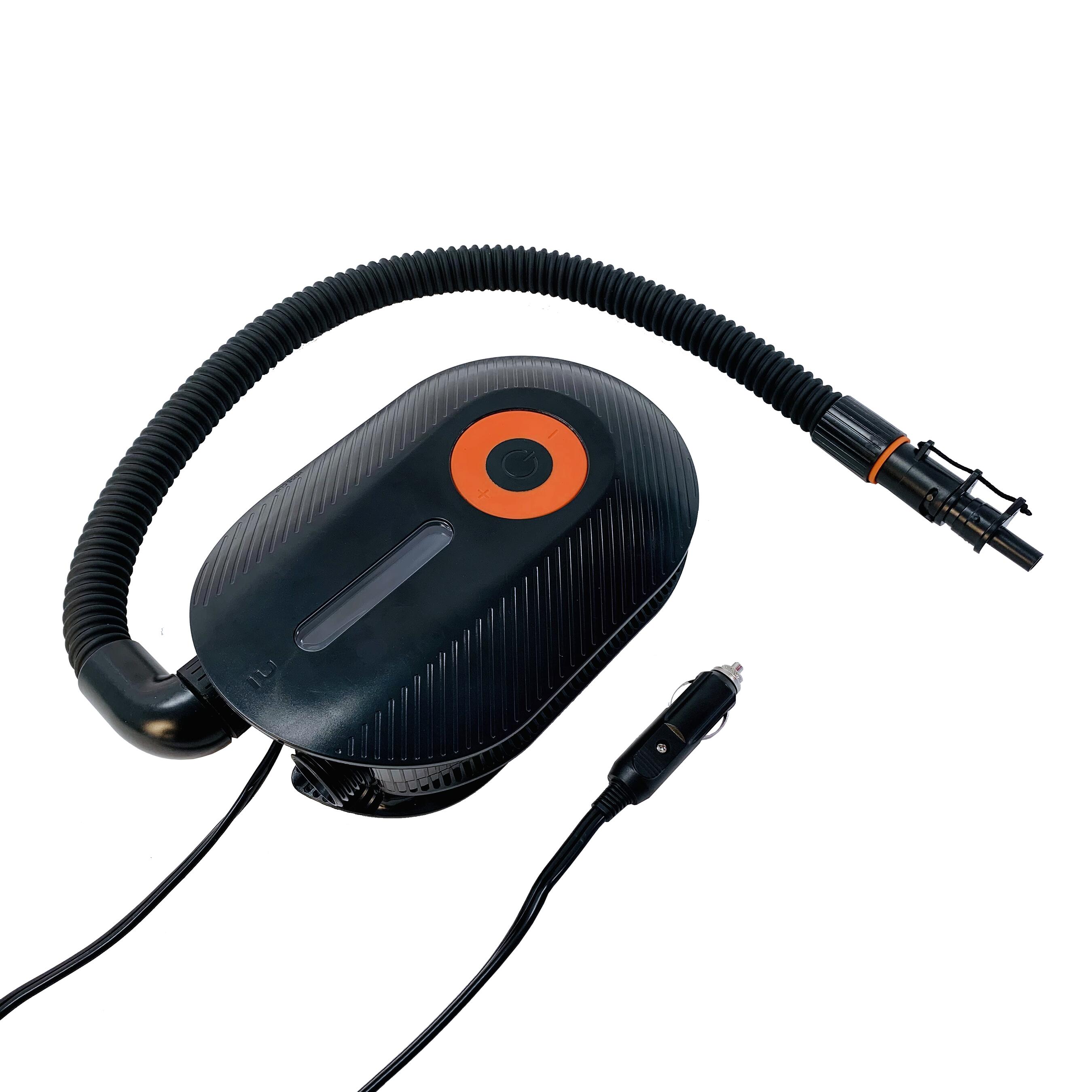

0-20PSI 13.8 V 10A electric pump (12V socket) for SUP boards and kayaks

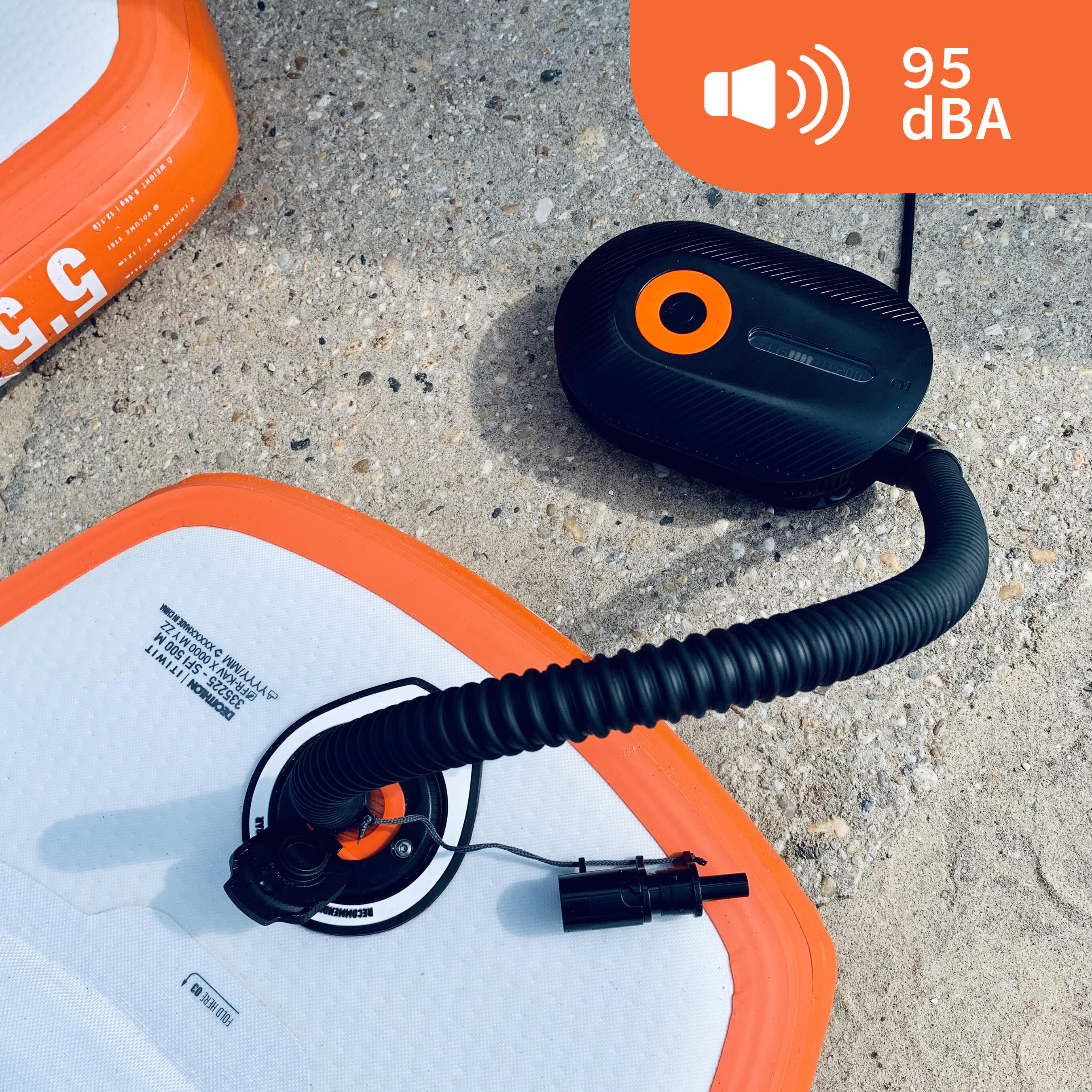

Connect this 20 PSI electric pump to your cigar lighter to inflate your SUP or kayak effortlessly. Time required for a 10' SUP = 9 min. Noise level: 95 dBA
This electric inflater plugs into the 12 V socket of your vehicle ENGINE ON (13.8 V-10 A). Inflating your Stand-Up Paddleboard, kayak, boat, tent, etc. up to 20 PSI (1.37 bar).
ID 8552993
BENEFITS

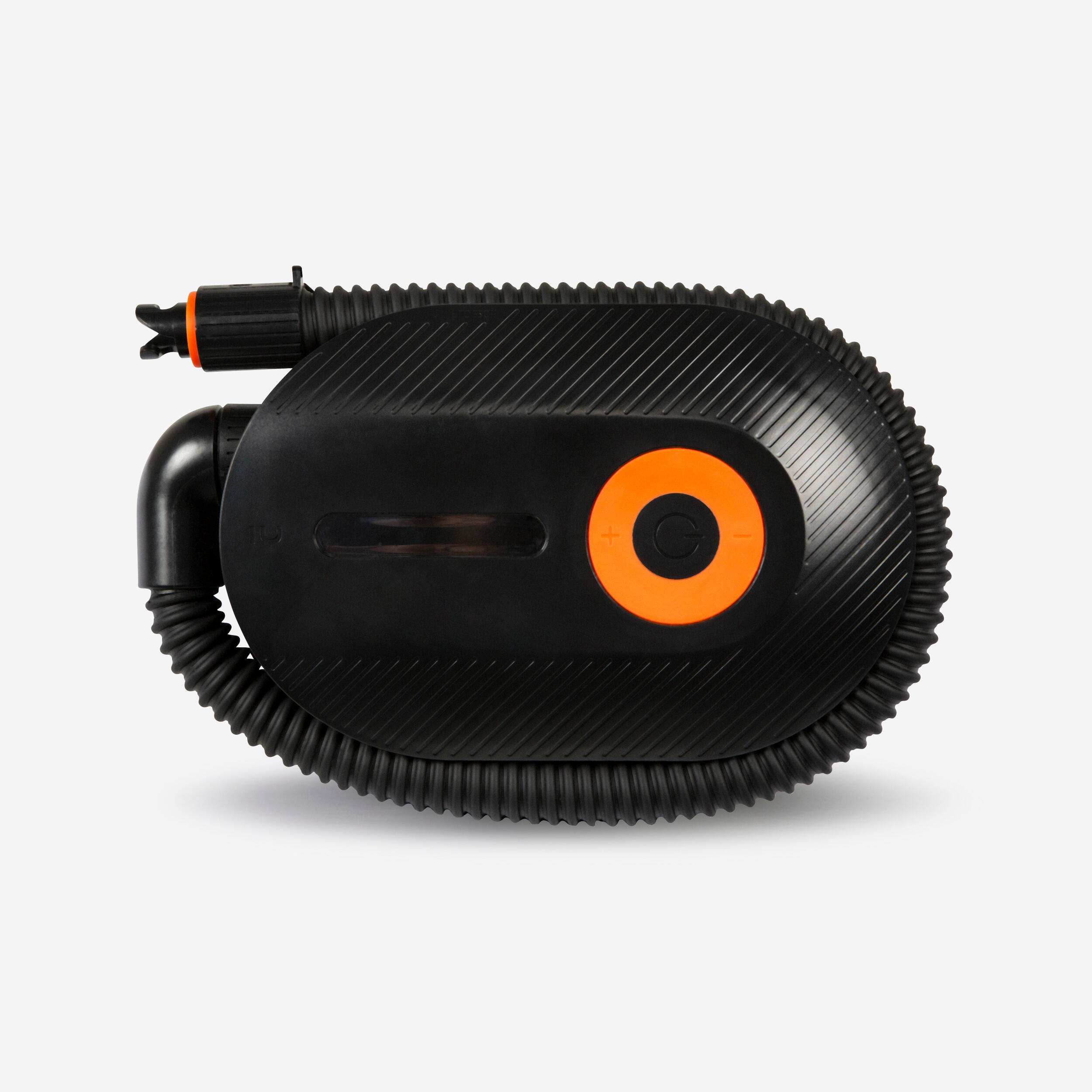

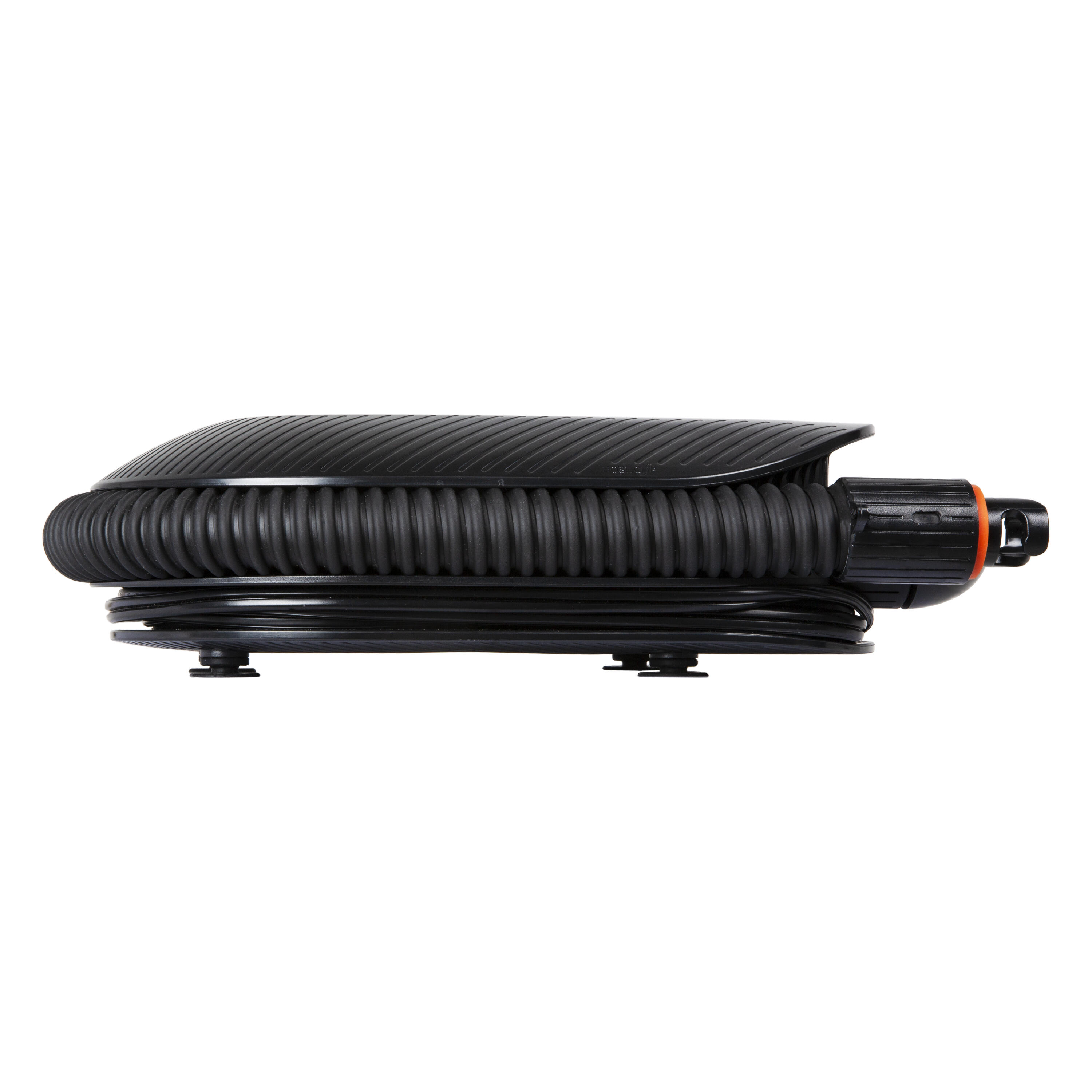

Compact design
All necessary accessories can be stored and attached to the pump.
Compatibility
1 Boston attachment, 1 mini Boston attachment, 1 high-pressure attachment.
Ease of use
Set the pressure, start the pump and let it inflate.
Power
Inflates a 300 L SUP to 15 PSI in approximately 9 minutes.
Modularity
Connect the INFLATE tube to inflate and the DEFLATE tube to deflate.
Parameter measurement
Inflates to 20 PSI and automatically stops at target pressure
Instructions
DownloadTECHNICAL INFORMATIONS
CONNECTION
Works when plugged into your vehicle's 12 V cigarette lighter socket with the engine running (13.8 Volt)
Compatible with at least 10-amp fuses.
Pressure of up to 20 PSI (1.37 bar) provided.
INFLATING
1/ Connect the pump to the cigar lighter with the car engine running.
2/ Connect the hose from the pump to the boat
3/ Select the pressure unit: psi/bar
4/ Set the recommended pressure with the +/- buttons
5/ Start inflating by pressing the POWER logo
The pump stops automatically at the set pressure.
Adjustment of the target pressure from 0.1 PSI (0.01 Bar) to 20 PSI (1.37 BAR).
One inflation cycle to 0.4 PSI and then one pressure cycle to 20 PSI.
DEFLATING
1/ Connect the pump to the cigarette lighter.
2/ Connect your hose to the "DEFLATE” outlet on the pump and connect it to the valve on your boat.
3/ Select the pressure unit: psi/bar
4/ Press the (-) button until “DEFLATE" appears on the screen.
5/ Start deflating by pressing the "POWER" logo.
6/ To stop deflating, press "POWER" or wait for the end of the 120-second cycle.
DIMENSIONS
Length: 28.5 cm
Width: 19 cm
Height: 9 cm
Weight: 1.6 kg

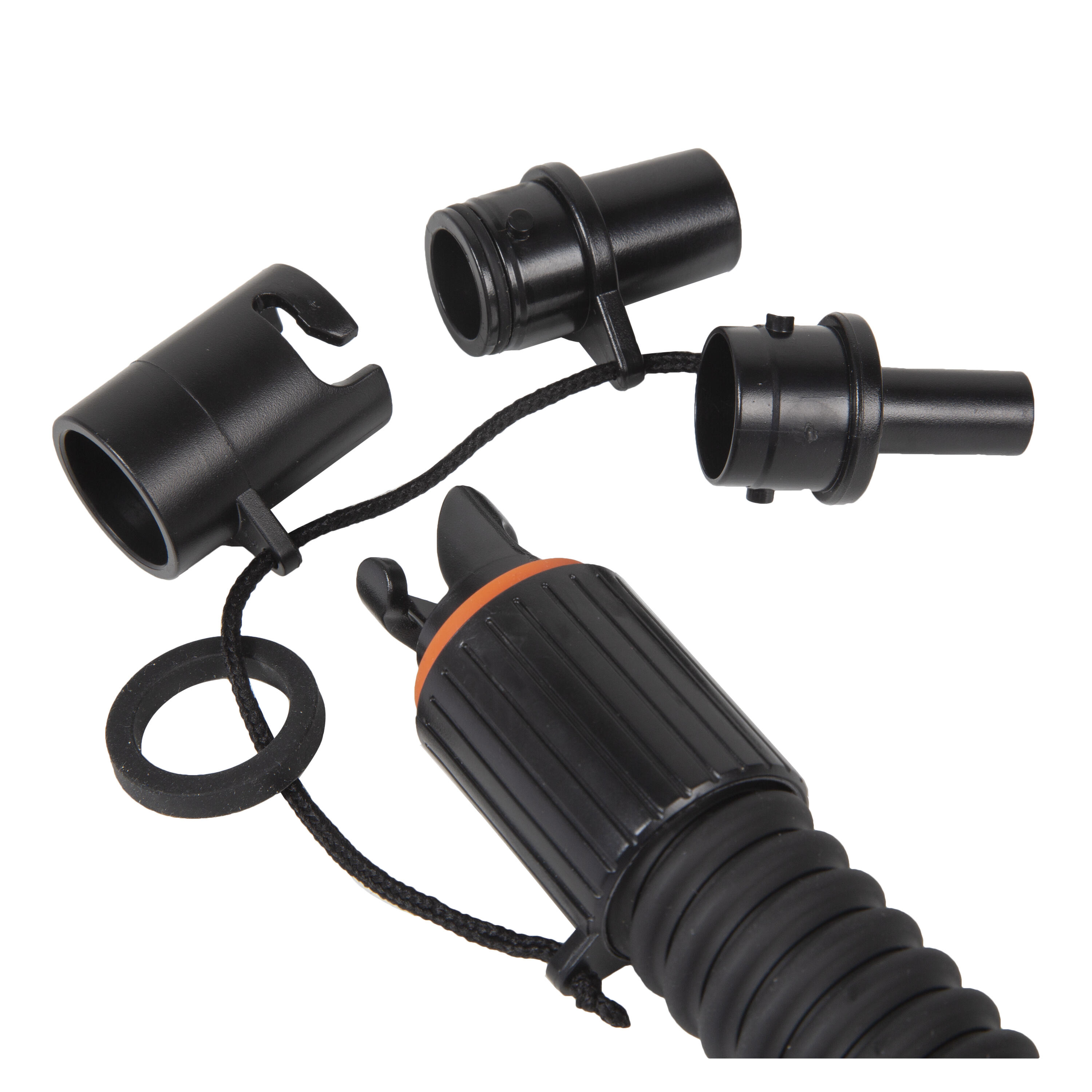

Supplied with a set of adapters
In addition to its standard adapter to inflate your dropstitch SUP or kayak to high pressure, the pump also comes with:
A "Mini Boston" adapter to inflate the kayak seats
a "Boston" adapter to inflate low-pressure kayaks, inflatable air mattresses and tents.
A nozzle adapter to inflate certain kitesurfing wings.
composition
composition
Metallic structure: 50.0% Steel, 50.0% Aluminium; Main part: 100.0% PCBA
Tips for storage and maintenance
Storage tips
Store in a dry place. Avoid dust and sand.
Restrictions on use
Follow the recommended pressures on your inflatable product.
TESTS AND WARRANTY
Parts guarantee
Availability of spare parts essential to the use of the product: 2 years
